Quick Details:

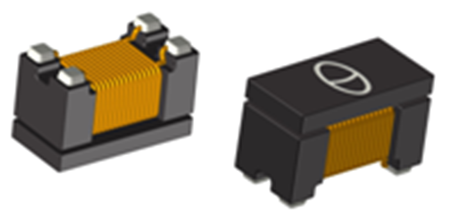

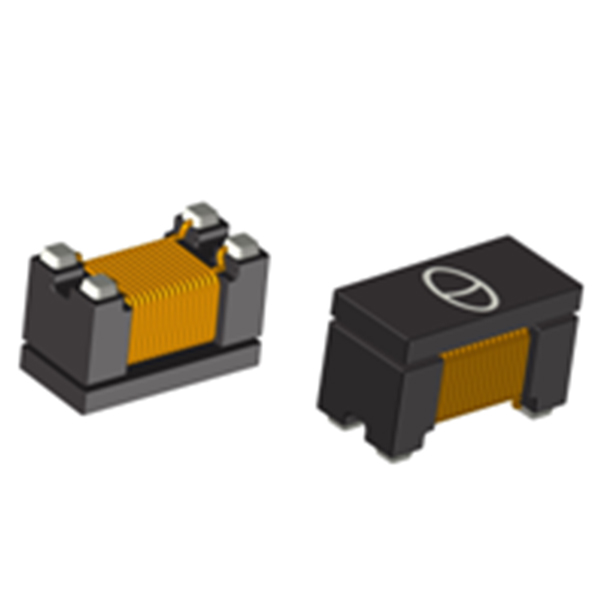

SMD Common Mode  Filters

Part No.          L(±0.3)         W(±0.3)         H(Typ)

CMC2012         2.0                 1.2               1.2

INTRODUCTION

The CMC series is errective for common mode noise suppression in differential

signal A full series of common mode choke is designed for excellent noise

attenuation with compact sizing fou use in wide range of applications

CHARACTERISTICS

1、Exeellent solderability and high heat resistance for reflow soldering or wave soldering

2、Minature size ,suitable fou SMT

3、With large coupling coefficient little inpact on high-speed differential signal

4、Prevention of common mode noise at high frequency

Part Number System

CMC 2012 -2 -500 T

   ①    ②    ③   ④ ⑤

① Type:

CMC Common Modes Chokes

② External Dimensions(L×W)(mm):2.0*1.2

③ Number of Lines: 2

④ Impedance:500=00Ω

⑤ Packing:Tape ＆ Reel

˙APPLICATIONS

1、USB lines of PC,peripheral equipments

2、LVDS lines of note PC,LCD

3、Redialed noise srppression on digital product clock lines signal lines and suppression noise on circrit
